Java servlet

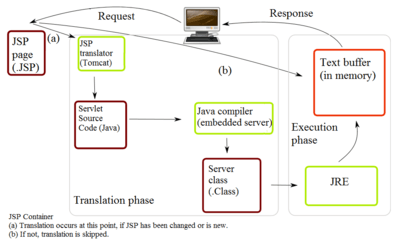

Life of a JSP file

A Java servlet is a Java program that extends the capabilities of a server. Although servlets can respond to any types of requests, they most commonly implement applications hosted on Web servers.[1] Such Web servlets are the Java counterpart to other dynamic Web content technologies such as PHP and ASP.NET.

Introduction

Servlets are most often used to process or store a Java class in Java EE that conforms to the Java Servlet API,[2] a standard for implementing Java classes that respond to requests. Servlets could in principle communicate over any client–server protocol, but they are most often used with the HTTP protocol. Thus "servlet" is often used as shorthand for "HTTP servlet".[3] Thus, a software developer may use a servlet to add dynamic content to a web server using the Java platform. The generated content is commonly HTML, but may be other data such as XML. Servlets can maintain state in session variables across many server transactions by using HTTP cookies, or rewriting URLs.

To deploy and run a servlet, a web container must be used. A web container (also known as a servlet container) is essentially the component of a web server that interacts with the servlets. The web container is responsible for managing the lifecycle of servlets, mapping a URL to a particular servlet and ensuring that the URL requester has the correct access rights.

The Servlet API, contained in the Java package hierarchy javax.servlet, defines the expected interactions of the web container and a servlet.[3]

A Servlet is an object that receives a request and generates a response based on that request. The basic Servlet package defines Java objects to represent servlet requests and responses, as well as objects to reflect the servlet's configuration parameters and execution environment. The package javax.servlet.http defines HTTP-specific subclasses of the generic servlet elements, including session management objects that track multiple requests and responses between the web server and a client. Servlets may be packaged in a WAR file as a web application.

Servlets can be generated automatically from Java Server Pages (JSP) by the JavaServer Pages compiler. The difference between servlets and JSP is that servlets typically embed HTML inside Java code, while JSPs embed Java code in HTML. While the direct usage of servlets to generate HTML (as shown in the example below) has become rare, the higher level MVC web framework in Java EE (JSF) still explicitly uses the servlet technology for the low level request/response handling via the FacesServlet. A somewhat older usage is to use servlets in conjunction with JSPs in a pattern called "Model 2", which is a flavor of the model–view–controller.

The current version of Servlet is 3.1.

History

The Servlet1 specification was created by Pavni Diwanji[4] while she worked at Sun Microsystems, with version 1.0 finalized in June 1997. Starting with version 2.3, the specification was developed under the Java Community Process. JSR 53 defined both the Servlet 2.3 and JavaServer Page 1.2 specifications. JSR 154 specifies the Servlet 2.4 and 2.5 specifications. As of June 9, 2015, the current version of the Servlet specification is 3.1.

In his blog on java.net, Sun veteran and GlassFish lead Jim Driscoll details the history of servlet technology.[5] James Gosling first thought of servlets in the early days of Java, but the concept did not become a product until Sun shipped the Java Web Server product. This was before what is now the Java Platform, Enterprise Edition was made into a specification.

Servlet API history
Servlet API version Released Platform Important Changes
Servlet 4.0 Under development Java EE 8 HTTP/2
Servlet 3.1 May 2013 Java EE 7 Non-blocking I/O, HTTP protocol upgrade mechanism (WebSocket)[6]
Servlet 3.0 December 2009 Java EE 6, Java SE 6 Pluggability, Ease of development, Async Servlet, Security, File Uploading
Servlet 2.5 September 2005 Java EE 5, Java SE 5 Requires Java SE 5, supports annotation
Servlet 2.4 November 2003 J2EE 1.4, J2SE 1.3 web.xml uses XML Schema
Servlet 2.3 August 2001 J2EE 1.3, J2SE 1.2 Addition of Filter
Servlet 2.2 August 1999 J2EE 1.2, J2SE 1.2 Becomes part of J2EE, introduced independent web applications in .war files
Servlet 2.1 November 1998 Unspecified First official specification, added RequestDispatcher, ServletContext
Servlet 2.0 JDK 1.1 Part of Java Servlet Development Kit 2.0
Servlet 1.0 June 1997

Compared with other web application models

The advantages of using servlets are their fast performance and ease of use combined with more power over traditional CGI (Common Gateway Interface). Traditional CGI scripts written in Java have a number of performance disadvantages:

Technologies like FastCGI and its derivatives (including SCGI, AJP) do not exhibit the performance disadvantages of CGI, incurred by the constant process spawning. They are, however, roughly as simple as CGI. They are therefore also in contrast with servlets which are substantially more complex.

Life cycle of a servlet

Three methods are central to the life cycle of a servlet. These are init(), service(), and destroy(). They are implemented by every servlet and are invoked at specific times by the server.

The following is a typical user scenario of these methods.

  1. Assume that a user requests to visit a URL.
    • The browser then generates an HTTP request for this URL.
    • This request is then sent to the appropriate server.
  2. The HTTP request is received by the web server and forwarded to the servlet container.
    • The container maps this request to a particular servlet.
    • The servlet is dynamically retrieved and loaded into the address space of the container.
  3. The container invokes the init() method of the servlet.
    • This method is invoked only when the servlet is first loaded into memory.
    • It is possible to pass initialization parameters to the servlet so that it may configure itself.
  4. The container invokes the service() method of the servlet.
    • This method is called to process the HTTP request.
    • The servlet may read data that has been provided in the HTTP request.
    • The servlet may also formulate an HTTP response for the client.
  5. The servlet remains in the container's address space and is available to process any other HTTP requests received from clients.
    • The service() method is called for each HTTP request.
  6. The container may, at some point, decide to unload the servlet from its memory.
    • The algorithms by which this decision is made are specific to each container.
  7. The container calls the servlet's destroy() method to relinquish any resources such as file handles that are allocated for the servlet; important data may be saved to a persistent store.
  8. The memory allocated for the servlet and its objects can then be garbage collected.

Example

The following example servlet prints how many times its service() method was called.

Note that HttpServlet is a subclass of GenericServlet, an implementation of the Servlet interface.

The service() method of HttpServlet class dispatches requests to the methods doGet(), doPost(), doPut(), doDelete(), and so on; according to the HTTP request. In the example below service() is overridden and does not distinguish which HTTP request method it serves.

import java.io.IOException;

import javax.servlet.ServletConfig;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

public class ServletLifeCycleExample extends HttpServlet {

    private int count;

    @Override
    public void init(ServletConfig config) throws ServletException {
        super.init(config);
        getServletContext().log("init() called");
        count = 0;
    }

    @Override
    protected void service(HttpServletRequest request, HttpServletResponse response)
            throws ServletException, IOException {
        getServletContext().log("service() called");
        count++;
        response.getWriter().write("Incrementing the count: count = " + count);
    }

    @Override
    public void destroy() {
        getServletContext().log("destroy() called");
    }

}

Container servers

The specification for Servlet technology has been implemented in many products. See a list of implementations on the Web container page.

References

  1. ↑ "servlet". http://www.webopedia.com/: WEBOPEDIA. Retrieved 2011-04-27. A small java program that runs on a server. The term usually refers to a Java applet which runs within a web server environment. This is analogous to a Java applet that runs within a web browser environment.
  2. ↑ "Servlet (Java(TM) EE 7 Specification APIs)". oracle.com. Retrieved 22 November 2016.
  3. 1 2 3 "Servlet Essentials - Chapter 1". novocode.com. Retrieved 2016-11-22.
  4. ↑ "Pavni Diwanji". Family Online Safety Institute. Retrieved 12 November 2016.
  5. ↑ "Servlet History | Java.net". Weblogs.java.net. 2005-12-10. Retrieved 2013-06-14.
  6. ↑ "What's new in Servlet 3.1 ? - Java EE 7 moving forward (Arun Gupta, Miles to go ...)". oracle.com. Retrieved 22 November 2016.
